Soil Compaction Testing Methods
FIELD TESTING GUIDE
A complete guide to field testing. Soil compaction testing methods help engineers, contractors and construction inspectors determine whether soil, aggregate and pavement materials have achieved the properties required for a project.
Proper compaction is essential for roads, building foundations, parking areas, earthworks, utility trenches and other infrastructure. Inadequate compaction can contribute to settlement, reduced bearing performance, pavement deterioration and costly repairs.
Not all soil compaction testing methods measure the same thing. Some determine density and moisture content, while others evaluate impact response, strength, stiffness, deflection or penetration resistance. Understanding these differences is essential when selecting equipment and developing an effective field quality-control program.
Nuclear density gauge
Sand cone
Electrical & electromagnetic density
Clegg Impact Value
Light Weight Deflectometer
Dynamic Cone Penetrometer
Laboratory compaction
This guide explains how these methods work, what each measures, their advantages and limitations, and how to choose the right approach for your project.
What Is Soil Compaction Testing?
Soil compaction testing evaluates the condition of soil or aggregate after it has been compacted during construction.
Compaction generally involves applying mechanical energy to reduce air voids and bring soil particles into a more stable arrangement. The resulting properties depend on soil type, moisture content, compaction effort and construction technique. Depending on the material and project requirements, testing may evaluate:
Dry density
Strength
Uniformity across a construction area
Moisture content
Stiffness
Response to applied loads
Percentage of maximum dry density
Bearing performance
The purpose of testing is to verify that the material meets the applicable engineering requirements. A road project may require a specified percentage of maximum dry density, while another may need to evaluate the strength or stiffness of a compacted subgrade. These are related but different objectives, so the method should be selected according to the property that needs to be measured.
Why Is Soil Compaction Testing Important?
Compaction affects how soil and aggregate behave under loads from buildings, vehicles, equipment and other structures. Insufficient or inconsistent compaction can create problems throughout the life of a project.
Preventing settlement
Poorly compacted fill may compress under loading or as moisture conditions change, contributing to settlement beneath foundations, roads, slabs and utility trenches.
Identifying weak areas
Testing multiple locations can reveal differences between sections that might otherwise go undetected.
Improving pavement performance
Roads depend on properly prepared subgrade, subbase and base layers. Variations in compaction and strength can cause uneven support and premature deterioration.
Supporting quality control
Consistent testing helps contractors and engineers evaluate construction processes and decide whether corrective work may be needed.
Verifying construction quality
Field testing provides information about the condition of the material after construction activities have taken place.
The appropriate testing method depends on the project specification, material type and performance requirements.
The Main Soil Compaction Testing Methods
Several methods are used to evaluate compacted soil in the laboratory and field. Each has a different purpose.
1 - Nuclear Density Gauge Testing
Widely used for field quality control because it provides rapid, nondestructive measurements of soil density and water content. Under ASTM D6938, the gauge uses gamma radiation to determine density and neutron interactions to estimate water content. Dry density can then be calculated.
What it measures
Wet density
Water content
Dry density
Advantages
Rapid field measurements
Nondestructive testing
Direct density-related results
Widely used in construction quality control
Limitations
Uses radioactive material
Requires training and regulatory compliance
Requires calibration and proper procedures
Does not directly measure strength or stiffness
Appropriate when a project requires density-based quality control. Organizations seeking non-nuclear methods should evaluate alternatives based on the property they need to measure.
Reference: ASTM D6938 — Nuclear Density and Water Content Testing →
2 - Sand Cone Testing
Determines in-place density by measuring the volume of a test hole and the mass of soil removed. The hole is excavated, the removed material is weighed, and calibrated sand determines the excavation volume. Moisture content is determined separately to calculate dry density.
What it measures
In-place density
Dry density when moisture content is known
Advantages
No radioactive material
Established field density method
Suitable for a range of conventional earthwork
Limitations
Requires excavation
More hands-on than instrument-based methods
Time-consuming across numerous locations
Care needed to avoid losing soil or disturbing the hole
Useful when direct in-place density measurement is required without a nuclear gauge.
3 - Electrical and Electromagnetic Density Testing
Uses electrical properties or electromagnetic responses to estimate density-related characteristics without a radioactive source. Measurement principle and capabilities vary by instrument; some estimate in-place density and water content.
What it measures
Density-related properties
Moisture-related properties, depending on instrument
Advantages
No radioactive source
Instrument-based field testing
Non-nuclear option for density-focused applications
Limitations
Performance depends on device and material conditions
Calibration and verification are important
Affected by composition, moisture and site conditions
Not all instruments measure the same properties
ASTM D7830/D7830M covers in-place density and water content using an electromagnetic soil density gauge. Verify the current standard and the instrument's capabilities before selecting this method.
4 - Clegg Impact Value Testing

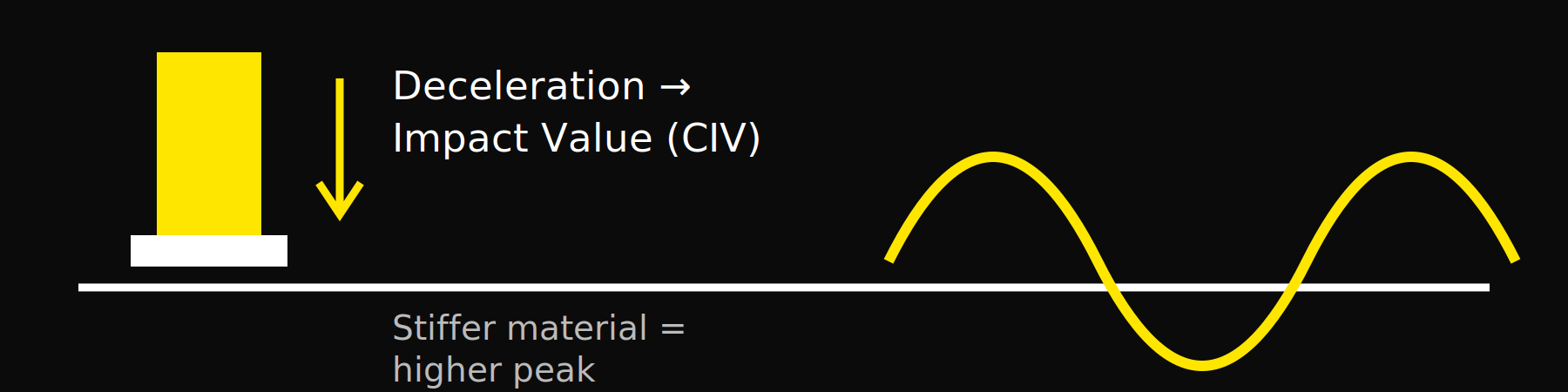

The Clegg Impact Soil Tester, or Clegg Hammer, uses a controlled falling mass and an accelerometer to measure the deceleration when the hammer impacts the surface. The result is the Clegg Impact Value (CIV), or Impact Value (IV). Rather than measuring density, it indicates impact response, strength and stiffness. ASTM D5874-24 covers Impact Value in the field or a test mold, identifying pavement construction, soil-aggregate materials and earthworks compaction control. It explains that Impact Value is a strength index from which compaction may be inferred under appropriate moisture conditions and correlations.
What it measures
Impact Value
Material response related to strength and stiffness
Changes in response that help assess compaction uniformity
Advantages
No radioactive source
Rapid field measurements
Portable equipment
Useful for testing many locations
Information beyond density alone
Suits road, pavement, aggregate and earthwork materials
Limitations
Does not directly measure density
Affected by moisture, grading, layer thickness and underlying material
Hammer configuration and procedure matter
Project-specific correlations may be needed for density or CBR
Acceptance criteria must suit the project
Useful for evaluating field strength response, compaction uniformity or pavement-material performance. It should not automatically be substituted for a required density test.
5 - Light Weight Deflectometer Testing
Applies a controlled dynamic load to a surface through a loading plate and measures the resulting deflection. The test produces a deflection- or stiffness-related result, depending on the instrument and calculation method.
What it measures
Surface deflection
A calculated stiffness or deformation modulus, per the test procedure
Advantages
Portable field equipment
Rapid testing
Useful for subgrade and aggregate-base evaluation
Information about response to loading
Limitations
Does not directly measure density
Depends on procedure, loading conditions and material response
Influenced by underlying layers and contact conditions
Not interchangeable with every other stiffness or strength test
Worth considering when the project specifically needs a deflection- or modulus-related measurement.
6 - Dynamic Cone Penetrometer Testing
Measures the resistance of soil to penetration by a cone driven into the ground with repeated impacts. Penetration per blow or group of blows indicates resistance, and changes can help identify changes in material properties with depth.
What it measures
Penetration resistance
Variation in resistance with depth
Parameters that may be correlated with other properties
Advantages
Portable equipment
No radioactive source
Profile of subsurface resistance
Useful for subgrade and pavement investigations
Limitations
Does not directly measure density
Depends on soil type and procedure
Large particles and obstructions affect penetration
CBR correlations require appropriate conditions
Particularly useful when the objective includes evaluating resistance at different depths rather than only a surface measurement.
7 - Laboratory Compaction Testing
Establishes the relationship between moisture content and dry density for a particular soil under a specified compaction effort. Common procedures include the Standard Proctor and Modified Proctor tests.
Example: field dry density 1.90 Mg/m³, laboratory maximum dry density 2.00 Mg/m³Percentage compaction = (Field dry density ÷ Maximum dry density) × 100
(1.90 ÷ 2.00) × 100 = 95%
What it Establishes
Maximum dry density
Optimum moisture content
Field dry density can be compared with the laboratory maximum dry density to calculate percentage compaction. Laboratory testing establishes a reference value; it does not, by itself, tell you the in-place condition of every section. Field testing is needed to assess the compacted material.
Soil Compaction Testing Methods Compared
The following table summarizes the main differences between common field methods.
| Testing method | Primary measurement | Direct density measurement | Strength/stiffness information | Nuclear source |
|---|---|---|---|---|
| Nuclear density gauge | Density and water content | Yes | Not directly | Yes |
| Sand cone | Density | Yes | Not directly | No |
| Electromagnetic density gauge | Density/moisture-related properties | Depending on device | Not primary | No |
| Clegg Hammer | Impact Value | No | Yes, through impact response | No |
| Light Weight Deflectometer | Deflection/modulus | No | Yes | No |
| Dynamic Cone Penetrometer | Penetration resistance | No | Related resistance information | No |
| Laboratory Proctor test | Moisture-density relationship | Laboratory measurement | Not a direct field strength test | No |
These methods answer different engineering questions. The best choice is the method that meets the project requirements, not necessarily the one that produces the fastest result or the most familiar number.
Density vs. Strength vs. Stiffness
One of the most important considerations when selecting methods is understanding the difference between these three properties.
ρ
What is density?
Density describes the mass of material within a given volume. In compaction control, dry density is often compared with the maximum dry density established by laboratory testing.
σ
What is strength?
Strength describes the ability of a material to resist applied forces without failing.
E
What is stiffness?
Stiffness describes how a material responds to deformation under loading.
These properties are related, but they are not interchangeable. Two locations can have similar density results and still respond differently to loading because of moisture, material composition, grading or underlying conditions.
This is why some programs use density testing alongside a strength- or stiffness-oriented method. A density test may verify a specified percentage of maximum dry density, while a Clegg Hammer or LWD provides a different measurement of field material response. The appropriate combination depends on the project specification and engineering objectives.
